AIR-COOLED CLOSED LOOP SAMPLE CHILLER

STOLWAY ATEX IECEx CLOSED LOOP SAMPLE CHILLER

Custom-engineered Cooled Closed-loop Sampling Cooler configured in a variety of capacities.

  • Water Cooler for closed loop process sample Analyzer systems.
  • Suitable for installation with single & multi-circuit heat exchanger's
  • Ideal for applications or systems requiring close temperature control

STOLWAY ATEX IECEx CLOSED LOOP SAMPLE CHILLER

Typical Design Features

  • IECEx or ATEX Certified  single overall certificate of conformity
  • Zone 1 Group IIB+H2 T3
  • 54°C design ambient temp. as standard
  • Nominal capacity - 2 kW
  • 50Hz/60 Hz power supplies. Single or 3 Phase
  • 50°C Ambt. temperatures as standard.
  • Environmentally friendly R134a Refrigerant with zero ozone depletion potential

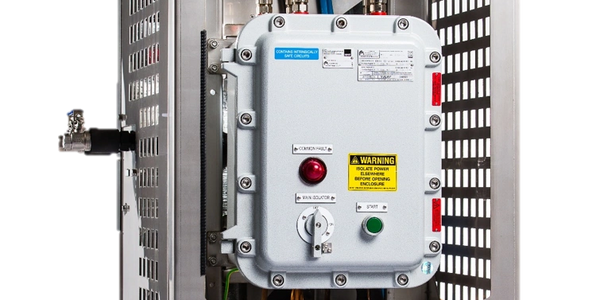

  • Integrated control enclosure
  • Single point power connection

STOLWAY ATEX IECEx CLOSED LOOP SAMPLE CHILLER

Typical Construction Features

  • Casing – powder-coated galvanized steel
  • Brazed plate stainless steel heat exchanger, fully insulated with high density neoprene
  • Fully hermetic compressor with Exd terminal box for maximum reliability
  • Non-sparking, Direct drive condenser fan and water circulating pump
  • Air cooled condenser coil – Cu tube/AL fins,  epoxy treatment

DOWNLOAD
